A deep groove ball bearing is a type of rolling-element bearing that uses balls to maintain the separation between the bearing races. It is the most common type of bearing and is used in a wide variety of applications, including machinery, equipment, vehicles, appliances, and toys.
Item No :
6003ZZOrder(MOQ) :
100pcsPayment :
T/T L/C Western Union, MoneygramProduct Origin :
ChinaShipping Port :
Guangzhou or ShenzhenLead Time :
5-60 days6003ZZ ball Bearing 17x35x10mm
Single row deep groove ball bearings is the most widely used rolling bearing. It is characterized by small frictional resistance and high speed. It can be used on parts that bear radial loads or joint loads that act simultaneously in radial and axial directions, and can also be used on parts that bear axial loads .
This type of 6003ZZ Metric radial ball bearing has a large friction coefficient, high limit speed, simple structure, low manufacturing cost, and is easy to achieve higher manufacturing accuracy. Available in a wide range of sizes, they are used in precision instruments, low-noise motors, automobiles, motorcycles and general machinery industries. They are the most widely used type of bearings in the machinery industry.
Feature：

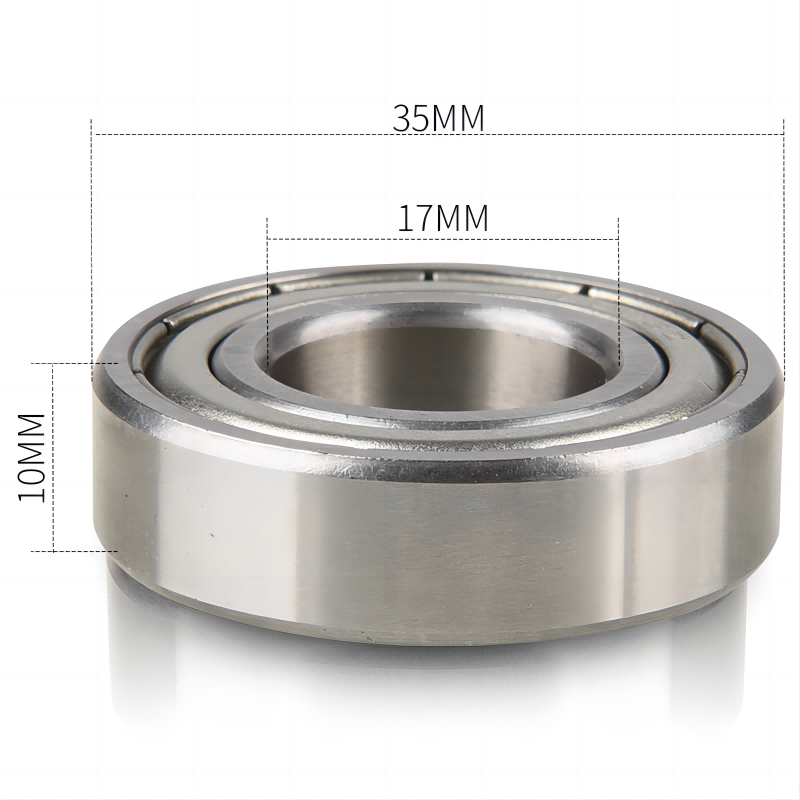

6003ZZ metric radial ball Bearing:
|
Bearing No. |
6003ZZ |
|
Inner Diameter |
17 mm |
|
Outer Diameter |
35 mm |
|
Width |
10mm |
|
Seal type |
Metal shield |
Application :
More Related Models :
|
Bearing NO |
(mm)Boundary Dimensions |
(Kn) |
(Kn) |
(r/min) Limit Rotational Speed |
(Kg) Weight |
|||
|
d |
D |
B |
Dynamic Load Rating Cr |
Static Load Rating Cor |
Grease Lubrication |
Oil Lubrication |
||
|
6000 |
10 |
26 |
8 |
4.58 |
1.97 |
30000 |
36000 |
0.019 |
|
6001 |
12 |
28 |
8 |
5.11 |
2.39 |
28000 |
32000 |
0.021 |
|
6002 |
15 |
32 |
9 |
5.59 |
2.84 |
24000 |
28000 |
0.03 |
|
6003 |
17 |
35 |
10 |
6.00 |
3.25 |
22000 |
26000 |
0.04 |
|
6004 |
20 |
42 |
12 |
9.38 |
5.03 |
18000 |
20000 |
0.068 |
|
6005 |
25 |
47 |
12 |
10.06 |
5.85 |
15000 |
18000 |
0.079 |
|
6006 |
30 |
55 |
13 |
13.23 |
8.30 |
13000 |
15000 |
0.113 |
|
6007 |
35 |
62 |
14 |
16.21 |
10.42 |
11000 |
13000 |
0.149 |
|
6008 |
40 |
68 |
15 |
17.03 |
11.70 |
10000 |
12000 |
0.185 |
|
6009 |
45 |
75 |
16 |
21.09 |
14.77 |
9000 |
11000 |
0.231 |
|
6010 |
50 |
80 |
16 |
22.02 |
16.25 |
8500 |
10000 |
0.25 |
|
6011 |
55 |
90 |
18 |
30.26 |
21.93 |
7500 |
9000 |
0.362 |
|
6012 |
60 |
95 |
18 |
31.66 |
24.22 |
7100 |
8500 |
0.385 |
|
6013 |
65 |
100 |
18 |
32.06 |
24.89 |
6700 |
8000 |
0.408 |
|
6014 |
70 |
110 |
20 |
38.59 |
30.43 |
6000 |
7100 |
0.537 |
|
6015 |
75 |
115 |
20 |
40.20 |
33.20 |
5600 |
6700 |
0.603 |
|
6016 |
80 |
125 |
22 |
47.50 |
39.80 |
5300 |
6300 |
0.821 |
|
6017 |
85 |
130 |
22 |
50.80 |
42.80 |
5000 |
6000 |
0.848 |
|
6018 |
90 |
140 |
24 |
58.00 |
49.80 |
4800 |
5600 |
1.103 |
|
Note:Above-mentioned products include its modification series,such as Z,2Z,RS,and 2RS etc. |
||||||||
Advantage of WISON Bearing:
With over 15 years bearing industry experience ,we have perfect group pf technical engineers give you best support
Direct manufacturer of bearings can offer you lowest price with small MOQ
WISON bearings can provide OEM and ODM service as to your sample or drawings.
We focus on quality during production and guarantee 100% quality inspection before delivery
WISON bearings give you on time delivery
