A deep groove ball bearing is a type of rolling-element bearing that uses balls to maintain the separation between the bearing races. It is the most common type of bearing and is used in a wide variety of applications, including machinery, equipment, vehicles, appliances, and toys.
Item No :
6004-2RS 6004ZZOrder(MOQ) :
100pcsPayment :
T/T L/C Western Union, MoneygramProduct Origin :
ChinaShipping Port :
Guangzhou or ShenzhenLead Time :
5-60 days

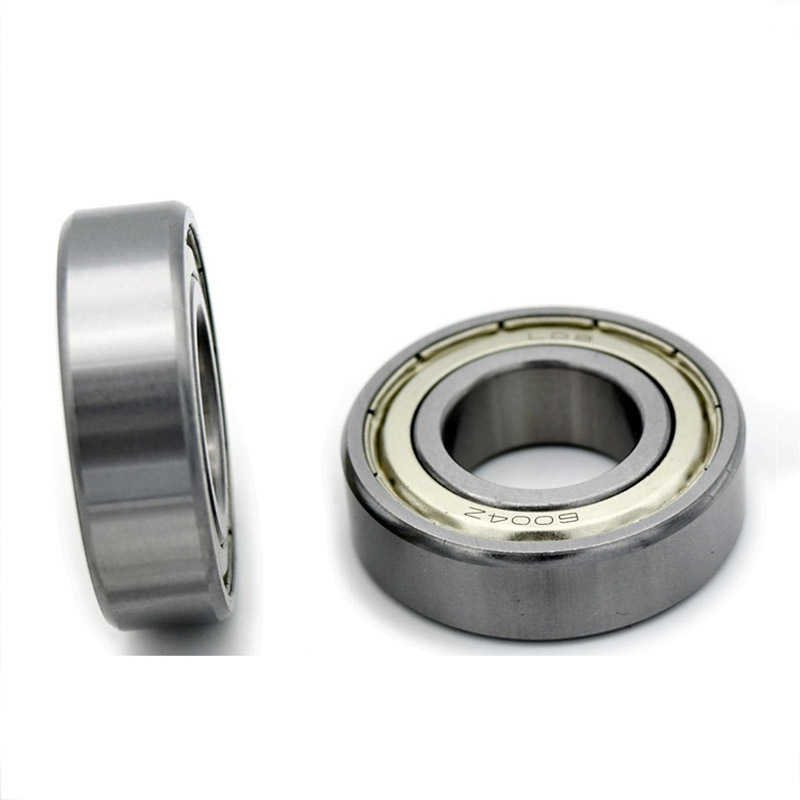

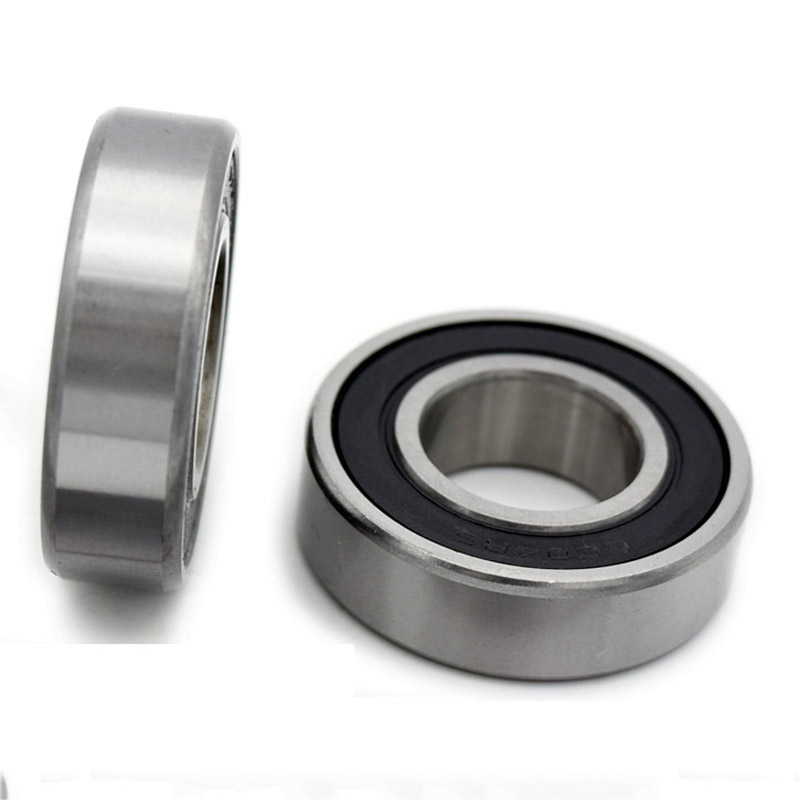

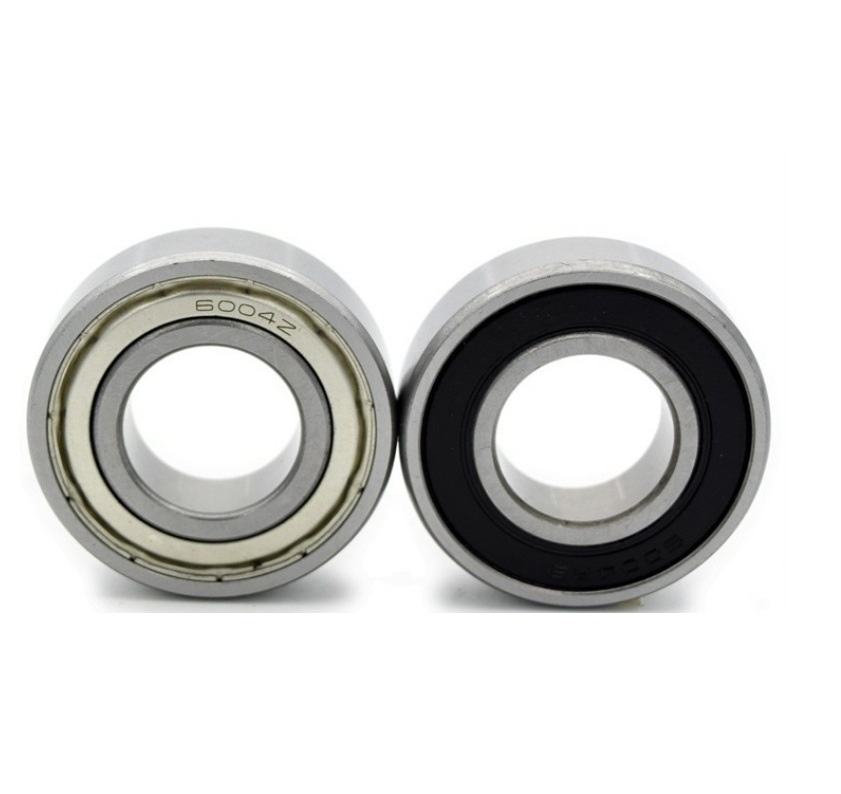

6004-2RS 6004ZZ Motorcycle Ball Bearing
Deep groove ball bearings are the most representative rolling bearings, widely suitable for high-speed or high-speed operation, and are very durable and do not require regular maintenance. It mainly bears radial load and can also bear a certain amount of axial load.
This type of 6004-2RS 6004ZZ motorcycle ball bearing has a large friction coefficient, high limit speed, simple structure, low manufacturing cost, and is easy to achieve higher manufacturing accuracy. Available in a wide range of sizes, they are used in precision instruments, low-noise motors, automobiles, motorcycles and general machinery industries. They are the most widely used type of bearings in the machinery industry.
Feature：
6004-2RS 6004ZZ Deep Groove Ball Bearing:
|
Bearing No. |
6004-2RS 6004ZZ |
|
Inner Diameter |
20 mm |
|
Outer Diameter |
42 mm |
|
Width |
12mm |
|
Seal type |
Metal shield /rubber sealed |
Application :
More Related Models :
|
Bearing NO |
(mm)Boundary Dimensions |
(Kn) |
(Kn) |
(r/min) Limit Rotational Speed |
(Kg) Weight |
|||
|
d |
D |
B |
Dynamic Load Rating Cr |
Static Load Rating Cor |
Grease Lubrication |
Oil Lubrication |
||
|
6000 |
10 |
26 |
8 |
4.58 |
1.97 |
30000 |
36000 |
0.019 |
|
6001 |
12 |
28 |
8 |
5.11 |
2.39 |
28000 |
32000 |
0.021 |
|
6002 |
15 |
32 |
9 |
5.59 |
2.84 |
24000 |
28000 |
0.03 |
|
6003 |
17 |
35 |
10 |
6.00 |
3.25 |
22000 |
26000 |
0.04 |
|
6004 |
20 |
42 |
12 |
9.38 |
5.03 |
18000 |
20000 |
0.068 |
|
6005 |
25 |
47 |
12 |
10.06 |
5.85 |
15000 |
18000 |
0.079 |
|
6006 |
30 |
55 |
13 |
13.23 |
8.30 |
13000 |
15000 |
0.113 |
|
6007 |
35 |
62 |
14 |
16.21 |
10.42 |
11000 |
13000 |
0.149 |
|
6008 |
40 |
68 |
15 |
17.03 |
11.70 |
10000 |
12000 |
0.185 |
|
6009 |
45 |
75 |
16 |
21.09 |
14.77 |
9000 |
11000 |
0.231 |
|
6010 |
50 |
80 |
16 |
22.02 |
16.25 |
8500 |
10000 |
0.25 |
|
6011 |
55 |
90 |
18 |
30.26 |
21.93 |
7500 |
9000 |
0.362 |
|
6012 |
60 |
95 |
18 |
31.66 |
24.22 |
7100 |
8500 |
0.385 |
|
6013 |
65 |
100 |
18 |
32.06 |
24.89 |
6700 |
8000 |
0.408 |
|
6014 |
70 |
110 |
20 |
38.59 |
30.43 |
6000 |
7100 |
0.537 |
|
6015 |
75 |
115 |
20 |
40.20 |
33.20 |
5600 |
6700 |
0.603 |
|
6016 |
80 |
125 |
22 |
47.50 |
39.80 |
5300 |
6300 |
0.821 |
|
6017 |
85 |
130 |
22 |
50.80 |
42.80 |
5000 |
6000 |
0.848 |
|
6018 |
90 |
140 |
24 |
58.00 |
49.80 |
4800 |
5600 |
1.103 |
|
Note:Above-mentioned products include its modification series,such as Z,2Z,RS,and 2RS etc. |
||||||||
Advantage of WIS Bearing:
With over 15 years bearing industry experience ,we have perfect group pf technical engineers give you best support
Direct manufacturer of bearings can offer you lowest price with small MOQ
WIS bearings can provide OEM and ODM service as to your sample or drawings.
We focus on quality during production and guarantee 100% quality inspection before delivery
WIS bearings give you on time delivery
