This 6206-2RS bearing 30x62x16 is versatile. Its design is very simple, non-detachable, suitable for high and even very high speeds, operates ruggedly and requires little maintenance. Deep groove ball bearings have deep raceway grooves close to the balls and can withstand axial loads in both directions as well as radial loads even at high speeds.
Item No :
6206-2RSOrder(MOQ) :
100pcsPayment :
T/T L/C Western Union, MoneygramProduct Origin :
ChinaShipping Port :
Guangzhou or ShenzhenLead Time :
5-60 days

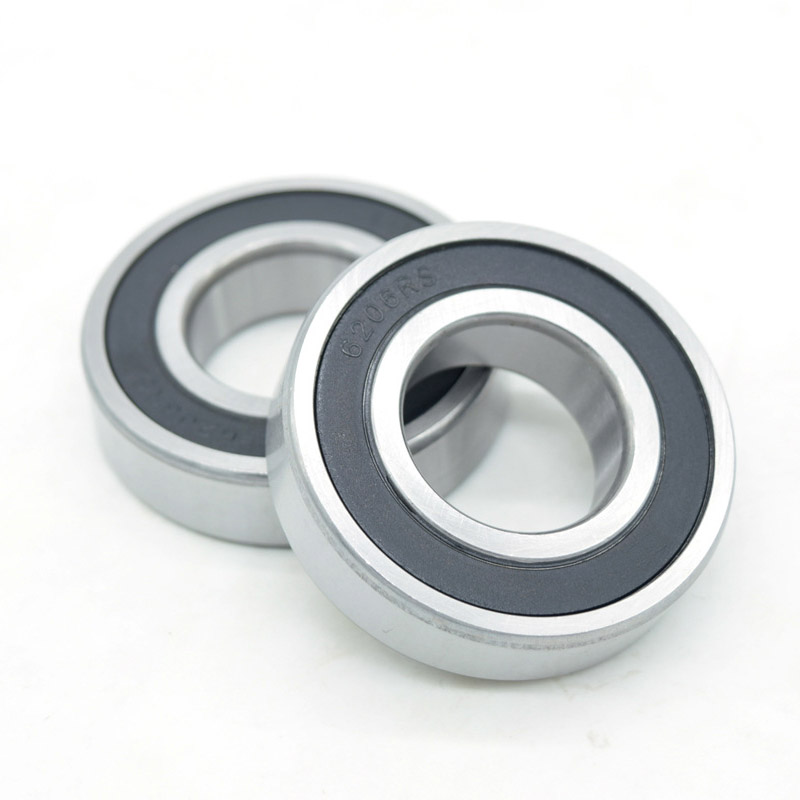

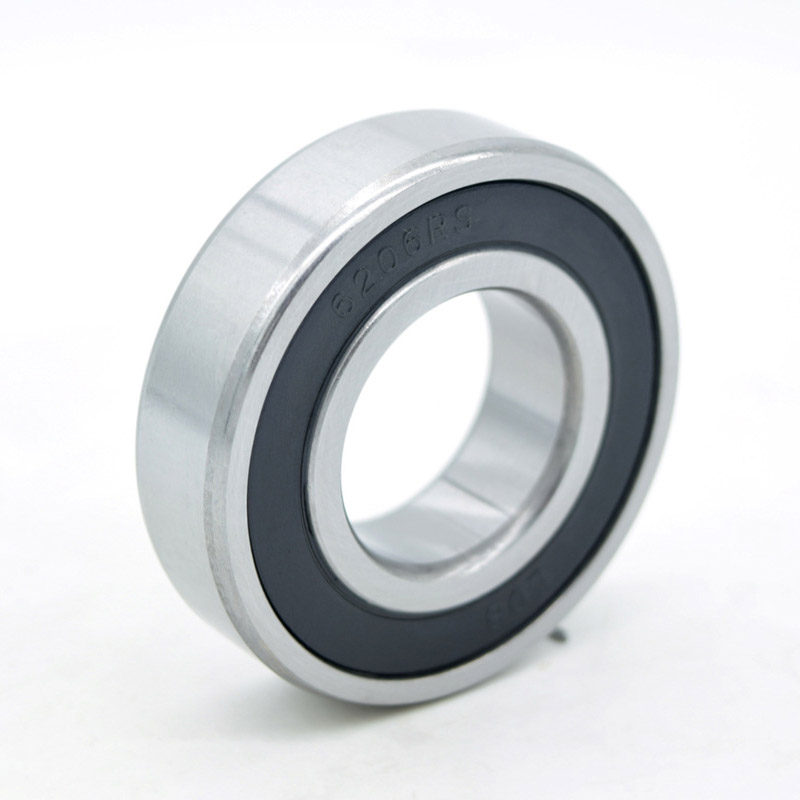

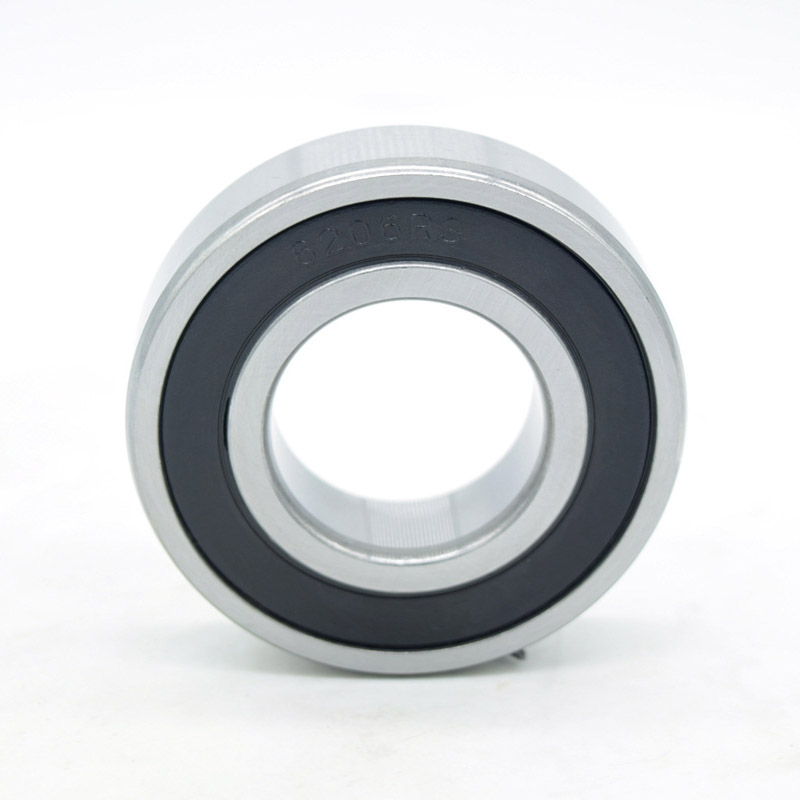

6206-2RS Sealed Ball Bearing 30x62x16mm
The 6206-2RS sealed bearing is a sealed ball bearing with dimensions 30x62x16. This single row bearing is designed to support radial loads. It is made of chromium steel for durability and resistance to deformation under heavy loads. This bearing has rubber seals on both sides to keep lubricants out and prevent contaminants from entering, and it is already lubricated at the manufacturer, so no additional lubrication is required.
Rolling bearings use rolling elements to maintain separation between moving parts to reduce rotational friction and support radial and axial loads. These elements can be one of the following types: spherical, cylindrical, sphere, barrel, needle, shaft or cone. All rolling bearings are open, shielded or sealed. Sealed bearings are lubricated with oil or grease at the bearing factory, while open and shielded bearings should be lubricated in place and relubricated periodically based on usage. Guards protect the bearing's working parts from environmental debris that may be introduced, which may reduce the speed and service life of the ball bearing.
6206-2RS Deep Groove Ball Bearing:
|
Bearing No. |
6206-2RS |
|
Inner Diameter |
30 mm |
|
Outer Diameter |
62 mm |
|
Width |
16mm |
|
Seal type |
Rubber seal |
Feature：
Application :
More Related Models :
|
Bearing No. |
I.D |
O.D |
W |
Load Rating(KN) |
Unit Weight |
|
|
|
d |
D |
B |
Dynamic |
Static |
|
|
|
mm |
mm |
mm |
Cr |
Cor |
kg |
|
6200 |
10 |
30 |
9 |
5.1 |
2.39 |
0.032 |
|
6201 |
12 |
32 |
10 |
6.1 |
2.75 |
0.037 |
|
6202 |
15 |
35 |
11 |
7.75 |
3.6 |
0.045 |
|
6203 |
17 |
40 |
12 |
9.6 |
4.6 |
0.065 |
|
6204 |
20 |
47 |
14 |
12.8 |
6.65 |
0.106 |
|
6205 |
25 |
52 |
15 |
14 |
7.85 |
0.128 |
|
6206 |
30 |
62 |
16 |
19.5 |
11.3 |
0.199 |
|
6207 |
35 |
72 |
17 |
25.7 |
15.3 |
0.288 |
|
6208 |
40 |
80 |
18 |
29.1 |
17.8 |
0.366 |
|
6209 |
45 |
85 |
19 |
32.5 |
20.4 |
0.407 |
|
6210 |
50 |
90 |
20 |
35 |
23.2 |
0.463 |
|
6211 |
55 |
100 |
21 |
43.5 |
29.2 |
0.607 |
|
6212 |
60 |
110 |
22 |
52.5 |
36 |
0.783 |
|
6213 |
65 |
120 |
23 |
57.5 |
40 |
0.99 |
|
6214 |
70 |
125 |
24 |
62 |
44 |
1.07 |
|
6215 |
75 |
130 |
25 |
66 |
49.5 |
1.18 |
|
6216 |
80 |
140 |
26 |
72.5 |
53 |
1.4 |
|
6217 |
85 |
150 |
28 |
83.5 |
64 |
1.79 |
|
6218 |
90 |
160 |
30 |
96 |
71.5 |
2.15 |
|
6219 |
95 |
170 |
32 |
109 |
82 |
2.62 |
|
6220 |
100 |
180 |
34 |
122 |
93 |
3.19 |
|
Remark |
Note:Above-mentioned products include its modification series,such as Z,2Z,RS,and 2RS etc. |
|||||
Advantage of WIS Bearing:
With over 15 years bearing industry experience ,we have perfect group pf technical engineers give you best support
Direct manufacturer of bearings can offer you lowest price with small MOQ
WIS bearings can provide OEM and ODM service as to your sample or drawings.
We focus on quality during production and guarantee 100% quality inspection before delivery
WIS bearings give you on time delivery
