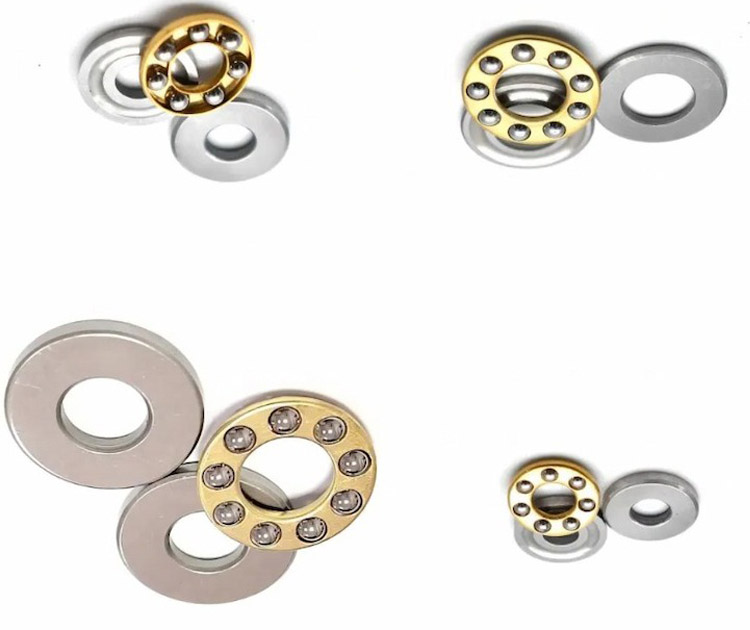

The standout advantage of these miniature axial thrust ball bearings (F7-13M/F7-15M/F7-17M) lies in their versatile load-bearing capacity, offering options in material and design, while also providing precise axial positioning and the ability to handle directional loads efficiently, making them adaptable for various applications and installation conditions.
Item No :
F7-13M/F7-15M/F7-17MOrder(MOQ) :
100pcsPayment :
T/T L/C Western Union, MoneygramProduct Origin :
ChinaShipping Port :
Guangzhou or ShenzhenLead Time :
5-60 daysBearing Factory Sale Miniature Axial Thrust Ball Bearing

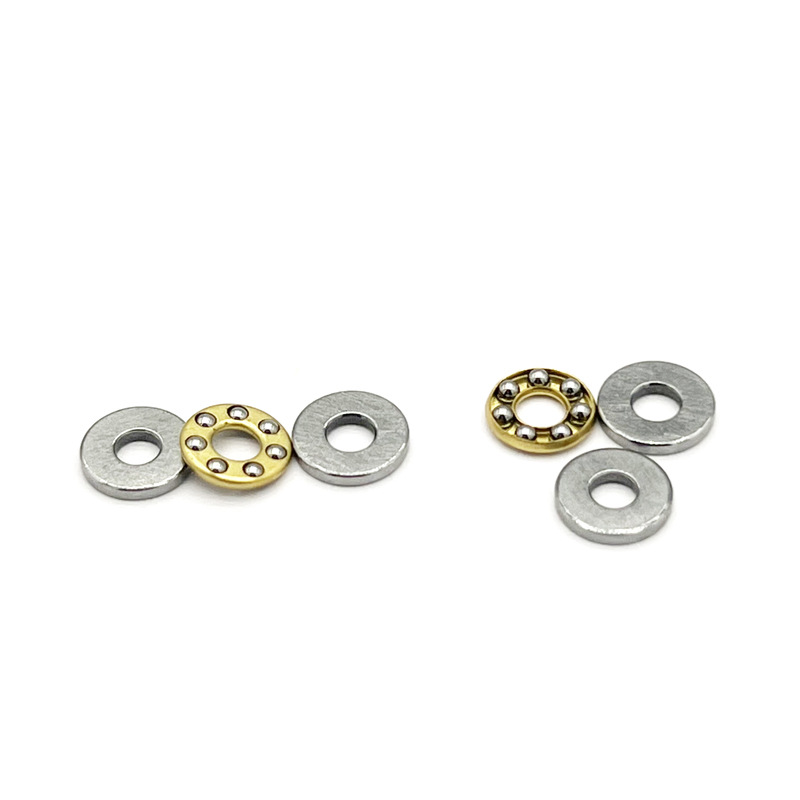

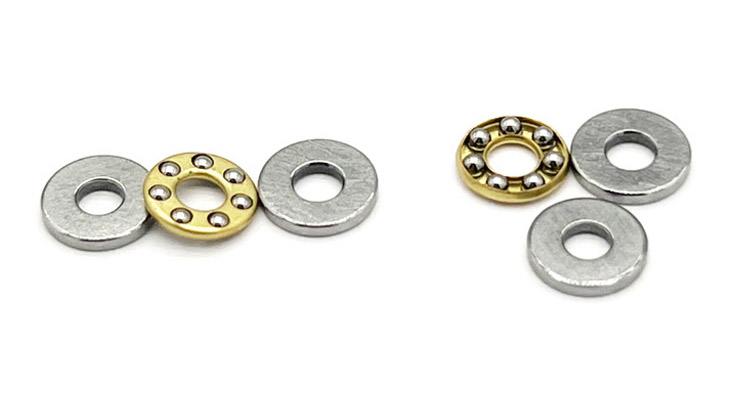

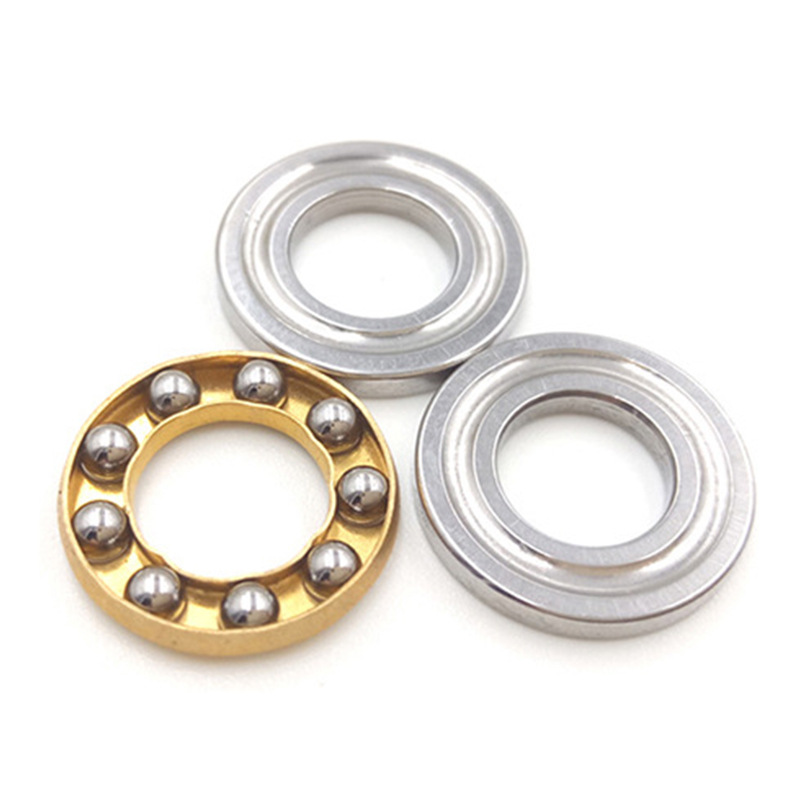

The gasket material of miniature thrust ball bearings is bearing steel or stainless steel, which can be divided into grooved and non-grooved. The retainer is made of stainless steel and copper. The flat thrust ball is a separable bearing with a contact angle of 90. It can be installed separately and can only bear axial load. The thrust bearing has a lower limit speed. The steel balls and centrifugal force squeeze the outside of the raceway and are easily scratched, but they are not suitable for high-speed operation. One-way thrust bearings can bear one-way axial load, and two-way thrust bearings can bear two-way axial load. Thrust bearings with spherical seats have self-aligning properties that eliminate the impact of installation errors.
Miniature Thrust Ball Bearings Size Chart:
FM SERIES(WITH GROOVE)
| Type | d | D | d1 | D1 | H | Load | Load Rating Cor(N) |
| Rating | |||||||
| Cr(N) | |||||||
| F3-8M | 3 | 8 | 3.2 | 7.8 | 3.5 | 600 | 480 |
| F4-9M | 4 | 9 | 4.2 | 8.8 | 4 | 800 | 520 |
| F4-10M | 4 | 10 | 4.2 | 9.8 | 4 | 658 | 580 |
| F5-10M | 5 | 10 | 5.2 | 9.8 | 4 | 950 | 830 |
| F5-11M | 5 | 11 | 5.2 | 10.8 | 4.5 | 988 | 880 |
| F5-12M | 5 | 12 | 5.2 | 11.8 | 4 | 988 | 880 |
| F6-12M | 6 | 12 | 6.2 | 11.8 | 4.5 | 1600 | 1255 |
| F6-14M | 6 | 14 | 6.25 | 13.8 | 5 | 1800 | 1588 |
| F7-13M | 7 | 13 | 7.2 | 16.8 | 4.5 | 1422 | 1255 |
| F7-15M | 7 | 15 | 7.2 | 14.8 | 5 | 2200 | 2000 |
| F7-17M | 7 | 17 | 7.2 | 16.8 | 6 | 2600 | 2256 |
| F8-16M | 8 | 16 | 8.2 | 15.8 | 5 | 2500 | 3000 |
| F8-19M | 8 | 19 | 8.2 | 18.8 | 7 | 3452 | 3000 |
| F9-20M | 9 | 20 | 9.2 | 19.8 | 7 | 3356 | 2999 |
| F10-18M | 10 | 18 | 10.2 | 17.8 | 5.5 | 2230 | 2721 |
F SERIES(WITHOUT GROOVE)
| Type | d | D | d1 | D1 | H | Load RatingCr(N) | Load Rating Cor(N) |
| F2-6 | 2 | 6 | 2 | 6 | 3 | 117 | 83 |
| F2X-7 | 2.5 | 7 | 2.5 | 7 | 3.5 | 156 | 117 |
| F3-8 | 3 | 8 | 3.2 | 7.8 | 3.5 | 600 | 480 |
| F4-9 | 4 | 9 | 4.2 | 8.8 | 4 | 800 | 520 |
| F4-10 | 4 | 10 | 4.2 | 9.8 | 4 | 658 | 580 |
| F5-11 | 5 | 11 | 5.2 | 10.8 | 4.5 | 988 | 880 |
| F6-12 | 6 | 12 | 6.2 | 11.8 | 4.5 | 1600 | 1255 |
| F7-15 | 7 | 15 | 7.2 | 14.8 | 5 | 2200 | 2000 |
| F8-16 | 8 | 16 | 8.2 | 15.8 | 5 | 2500 | 3000 |
| F9-17 | 9 | 17 | 9.2 | 16.8 | 5 | 578 | 627 |
| F10-18 | 10 | 18 | 10.2 | 17.8 | 5.5 | 2230 | 2721 |
Application :
Advantage of WIS Bearing:
With over 15 years bearing industry experience ,we have perfect group pf technical engineers give you best support
Direct manufacturer of bearings can offer you lowest price with small MOQ
WIS bearings can provide OEM and ODM service as to your sample or drawings.
We focus on quality during production and guarantee 100% quality inspection before delivery
WIS bearings give you on time delivery
This one direction thrust ball bearing is also called a ball thrust bearing or a thrust deep groove ball bearing. These bearings consist of shaft washers, bearing races, and ball and cage assemblies. Thrust ball bearings have an open design and these balls make them suitable for high rotational speeds.
