Home /Spherical roller bearings /

China Manufacturer self-aligning spherical roller bearing 22210 22211 22212 22213 22214

China Manufacturer self-aligning spherical roller bearing 22210 22211 22212 22213 22214

Spherical roller bearings are a type of rolling-element bearing that features two rows of barrel-shaped rollers. These bearings are designed to accommodate high radial loads and moderate axial loads in both directions. The inner ring with two raceways and the outer ring with a common spherical raceway provide the ability to accommodate misalignment or shaft deflections.Spherical roller bearings are commonly used in various applications where alignment issues or shaft deflections occur, such as in heavy machinery, mining equipment, paper mills, and vibrating screens. Their design helps in reducing friction and providing smooth operation even under challenging conditions.

  • Item No :

    22210 22211 22212 22213 22214
  • Order(MOQ) :

    10pcs
  • Payment :

    T/T L/C Western Union, Moneygram
  • Product Origin :

    China
  • Shipping Port :

    Guangzhou or Shenzhen
  • Lead Time :

    5-60 days

Chinese Manufacturer self-aligning spherical roller bearing

The self-aligning spherical roller bearing has two rows of rollers, one shared spherical raceway in the outer ring and two raceways in the inner ring and is inclined to an Angle relative to the bearing axis. This clever structure makes it with automatic aligning performance, so it is not easy to be affected by the Angle of shaft and bearing box seat on the error or shaft bending, suitable for installation error or shaft deflection caused by Angle error occasions. The bearing can bear not only radial load, but also two-way axial load. The inner hole of the self-aligning roller bearing has two kinds: cylindrical and conical, and the taper of the conical cone hole is 1:30 and 1:12. This kind of conical inner hole bearing is equipped with a tight sleeve or a disconnecting sleeve, so that the self-aligning ball bearing with the conical inner hole can be conveniently and quickly assembled on the optical shaft or the stepped machine shaft. Aligning roller bearing models are: aligning roller bearing (20000CC type); Taper hole aligning roller bearing (20000CCK type); Aligning roller bearing (20000CC/W33 type); Tapered hole aligning roller bearing (20000CCK/W33 type); Aligning roller bearing (20000CCK+H type) mounted on the tight sleeve; There are 6 kinds of aligning roller bearings (20000CCK/W33+H type) mounted on the tight sleeve

WISON self-aligning spherical roller bearing Features :

  • Using excellent high-purity bearing steel, the bearing life is up to about 80%.
  • Low friction coefficient faster rotational speed, lower sound, not easy to burn.
  • Quenching process, bearing inner and outer ring hardness is more stable, longer service time.
  • Various models,long life with high quality,support OEM service.




Application :

It is widely use for

Automobiles

agricultural machine

rolling mills

mining industry

Plastic machinery

Trailers and caravans

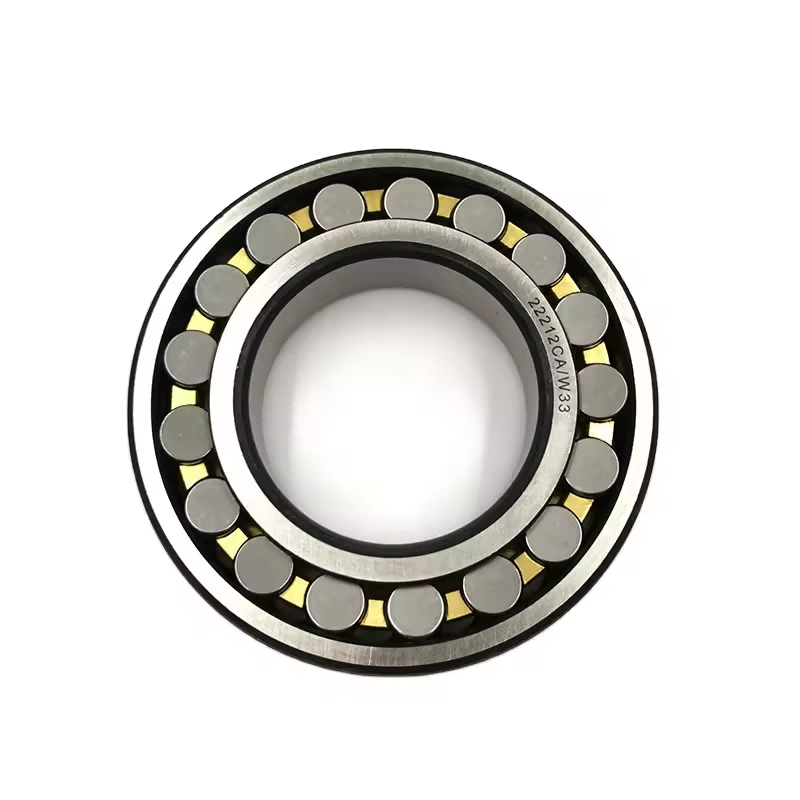

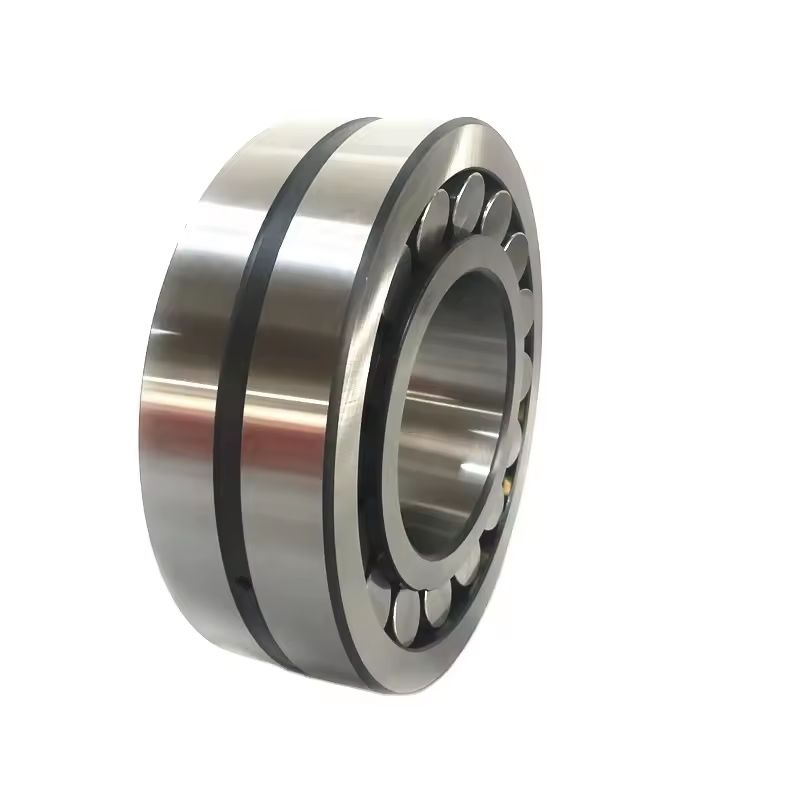

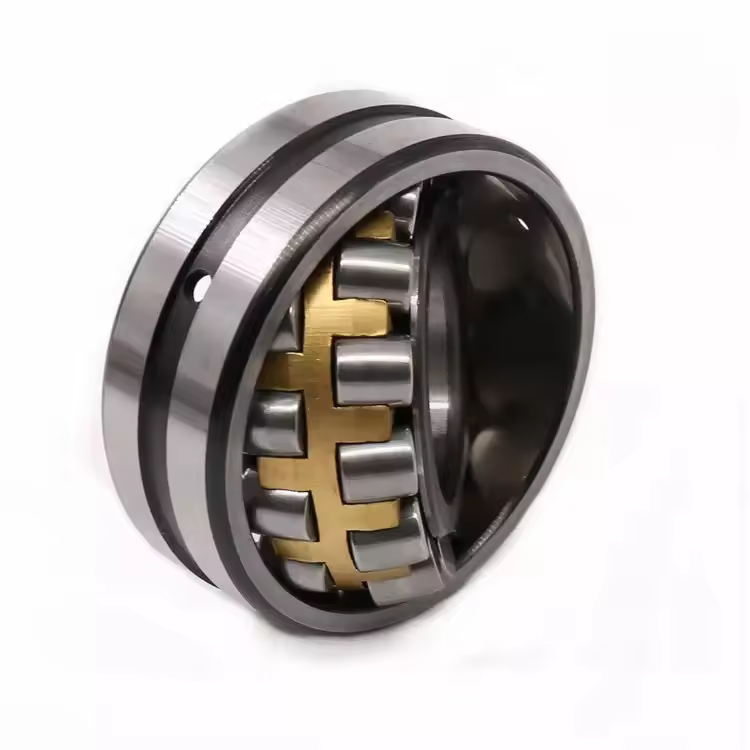

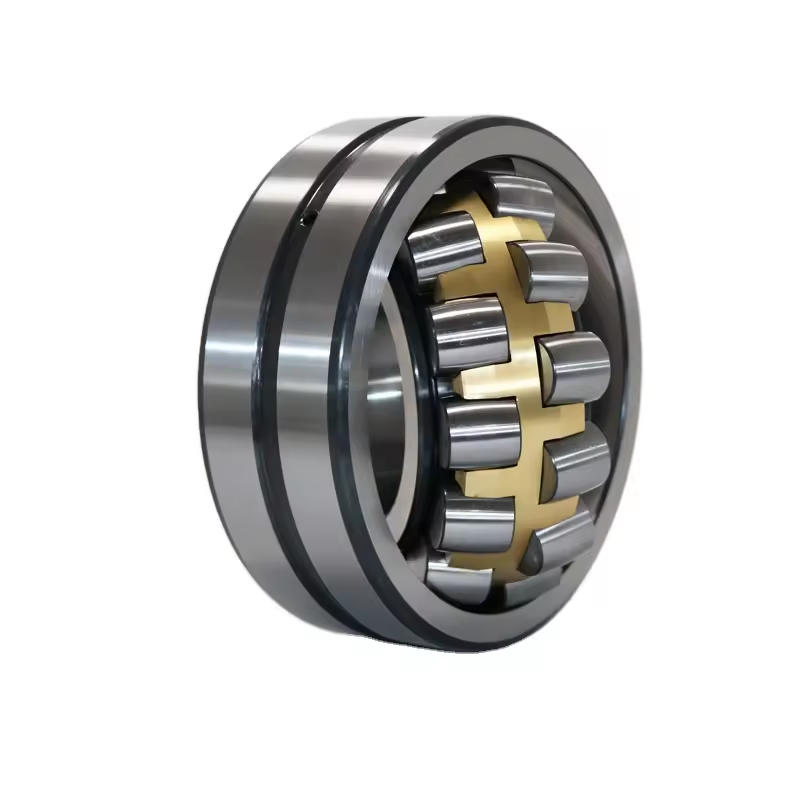

Display:


China Manufacturer self-aligning spherical roller bearing 22210 22211 22212 22213 22214China Manufacturer self-aligning spherical roller bearing self-aligning spherical roller bearing 22210 22211 22212 22213 22214




 self-aligning spherical roller bearing Size Chart

d

D

B

C

Co

r/min

L/P

Type

115

230

64

758

930

2600

3600

22226 EK + H 3126 *

115

230

80

826

1060

1900

2600

23226 CCK/W33 + H 2326

115

280

93

1176

1320

1800

2400

22326 CCK/W33 + H 2326 *

125

210

53

485

680

2600

3400

23028 CCK/W33 + H 3028 *

125

225

68

659

900

2200

2800

23128 CCK/W33 + H 3128

125

250

68

743

900

2400

3200

22228 CCK/W33 + H 3128 *

125

250

88

962

1250

1700

2400

23228 CCK/W33 + H 2328 *

125

300

102

1357

1560

1700

2200

22328 CCK/W33 + H 2328 *

135

225

56

531

750

2400

3200

23030 CCK/W33 + H 3030 *

135

250

80

883

1200

2000

2600

23130 CCK/W33 + H 3130

135

270

73

898

1080

2200

3000

22230 CCK/W33 + H 3130 *

135

270

96

1129

1460

1600

2200

23230 CCK/W33 + H 2330 *

135

320

108

1539

1760

1600

2000

22330 CCK/W33 + H 2330 *

140

240

60

614

880

2400

3000

23032CCK/W33 + H 3032 *

140

270

86

1029

1370

1900

2400

23132CCK/W33 + H 3132 *

140

290

80

1043

1290

2000

2800

22232CCK/W33 + H 3132 *

140

290

104

1281

1660

1500

2200

23232CCK/W33 + H 2332 *

140

340

114

1680

1960

1500

1900

22332CCK/W33 + H 2332 *

150

260

67

745

1060

2200

2800

23034 CCK/W33 + H 3034 *

150

280

88

1086

1500

1800

2400

23134 CCK/W33 + H 3134 *

150

310

86

1183

1460

1900

2600

22234 CCK/W33 + H 3134 *

150

310

110

1472

1930

1400

2000

23234 CCK/W33 + H 2334 *

150

360

120

1863

2160

1400

1800

22334 CCK/W33 + H 2334 *

160

250

52

519

830

2600

2800

23936 CCK/W33 + H 3936

160

280

74

883

1250

2000

2600

23036 CCK/W33 + H 3036 *

160

300

96

1263

1760

1700

2200

23136 CCK/W33 + H 3136 *

160

320

86

1237

1560

1800

2600

22236 CCK/W33 + H 3136 *

160

320

112

1557

2120

1300

1900

23236 CCK/W33 + H 2336 *

160

380

126

2077

2450

1300

1700

22336 CCK/W33 + H 2336 *

170

260

52

499

800

2400

2600

23938 CCK/W33 + H 3938

170

290

75

916

1340

1900

2400

23038 CCK/W33 + H 3038 *

170

320

104

1456

2080

1500

2000

23138 CCK/W33 + H 3138 *

170

340

92

1342

1700

1700

2400

22238 CCK/W33 + H 3138 *

170

340

120

1759

2400

1300

1800

23238 CCK/W33 + H 2338 *

170

400

132

2232

2650

1200

1600

22338 CCK/W33 + H 2338 *

180

280

60

651

1040

2200

2400

23940 CCK/W33 + H 3940

180

310

82

1058

1530

1800

2200

23040 CCK/W33 + H 3040 *

180

340

112

1665

2360

1500

1900

23140 CCK/W33 + H 3140 *

180

360

98

1526

1930

1600

2200

22240 CCK/W33 + H 3140 *

180

360

128

1947

2700

1200

1700

23240 CCK/W33 + H 2340 *

180

420

138

2439

2900

1200

1500

22340 CCK/W33 + H 2340 *

200

300

60

661

1080

2000

2200

23944 CCK/W33 + OH 3944 H

200

340

90

1261

1860

1600

2000

23044 CCK/W33 + OH 3044 H *

200

370

120

1888

2750

1300

1700

23144 CCK/W33 + OH 3144 H *

200

400

108

1835

2360

1500

2000

22244 CCK/W33 + OH 3144 H *

200

400

144

2485

3450

1100

1500

23244 CCK/W33 + OH 2344 H *

200

460

145

2839

3450

1000

1400

22344 CCK/W33 + OH 2344 H *

220

320

60

685

1160

1900

2000

23948 CCK/W33 + OH 3948 H

220

360

92

1340

2080

1500

1900

23048 CCK/W33 + OH 3048 H *

220

400

128

2187

3200

1200

1600

23148 CCK/W33 + OH 3148 H *

220

440

120

2258

3000

1300

1800

22248 CCK/W33 + OH 3148 H *

220

440

160

3042

4300

950

1300

23248 CCK/W33 + OH 2348 H *

220

500

155

3229

4000

950

1300

22348 CCK/W33 + OH 2348 H *

240

360

75

1055

1800

1700

1900

23952CCK/W33 + OH 3952 H

240

400

104

1675

2550

1300

1700

23052CCK/W33 + OH 3052 H *

240

440

144

2664

3900

1100

1400

23152CCK/W33 + OH 3152 H *

240

480

130

2722

3550

1200

1600

22252CCK/W33 + OH 3152 H *

240

480

174

3395

4750

850

1200

23252CCK/W33 + OH 2352 H *

240

540

165

3680

4550

850

1100

22352CCK/W33 + OH 2352 H *

260

380

75

1016

1760

1600

1700

23956 CCK/W33 + OH 3956 H *





Advantage of WISON Bearing:

  • Rich experience

With over 15 years bearing industry experience ,we have perfect group pf technical engineers give you best support

  • Competitive price and small MOQ

Direct manufacturer of bearings can offer you lowest price with small MOQ

  • Customized service

WIS bearings can provide OEM and ODM service as to your sample or drawings.

  • Strict quality control

We focus on quality during production and guarantee 100% quality inspection before delivery

  • Delivery strength

WIS bearings give you on time delivery

  • Free sample provided
