The CSK35PP One Way Clutch Ball Bearing is a precision-engineered component designed to facilitate unidirectional motion in mechanical systems. With its advanced design and robust construction, this clutch ball bearing offers reliable performance across various industrial applications.
Item No :
CSK35PPOrder(MOQ) :
100PCSPayment :
T/T L/C Western Union, MoneygramProduct Origin :
ChinaShipping Port :
Guangzhou or ShenzhenLead Time :
5-60 daysCSK35PP One Way Clutch Ball Bearing 35x72x17mm
CSK series one way bearing is a sprag type freewheel , integrated into 6200 series ball bearing(except sizes 8 and 40), Also named OW BB KK etc. It provides you an one way clutch, and eliminates the need for a ball bearing. It gives a high degree of freewheeling accuracy while utilizing a minimum of space. It is bearing supported, shipped grease lubricated and protected against dust larger than 0.3mm diameter. Torque transmission is ensured by a press fit assembly into a rigid outer housing with N6 tolerance, and onto a shaft with n6 tolerance. The initial bearing radial clearance is set at C5, and is reduced if using the press fit as specified. Operating temperature range:-20°C to +100°C. Peaks up to +120°C are acceptable for short periods.
CSK35PP One Way Clutch Ball Bearing 35x72x17mm Dimension:
|
Bearing No. |
CSK35PP |
|
Inner Diameter |
35 mm |
|
Outer Diameter |
72 mm |
|
Width |
17 mm |
|
Seal type |
OPEN,ZZ,2RS |
Application :
The CSK35PP One Way Clutch Ball Bearing is essential for precise unidirectional motion control in diverse applications. From automotive transmission systems to printing machinery and industrial equipment like conveyors and packaging machines, its reliable performance ensures smooth operation and optimized productivity. Additionally, it enhances efficiency in agricultural machinery, contributing to tasks like harvesting and irrigation. With its robust construction and versatile functionality, the CSK35PP is indispensable across various industries, offering seamless motion control and reliable power transmission.

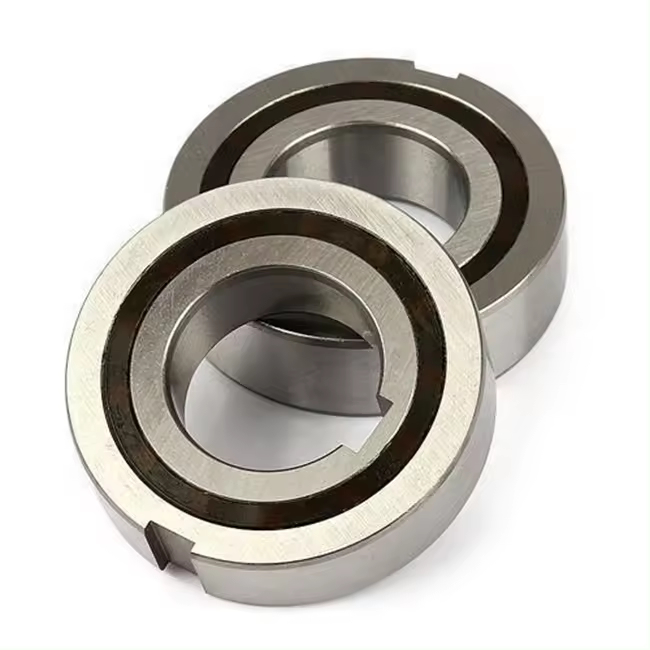

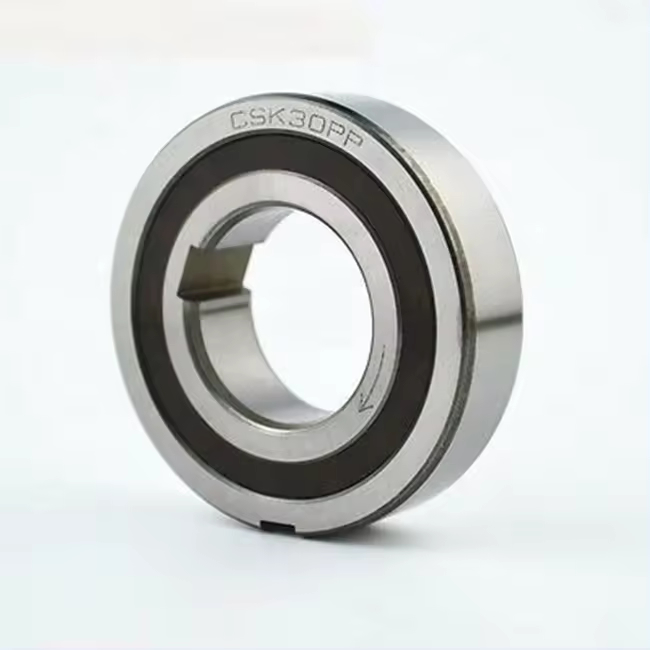

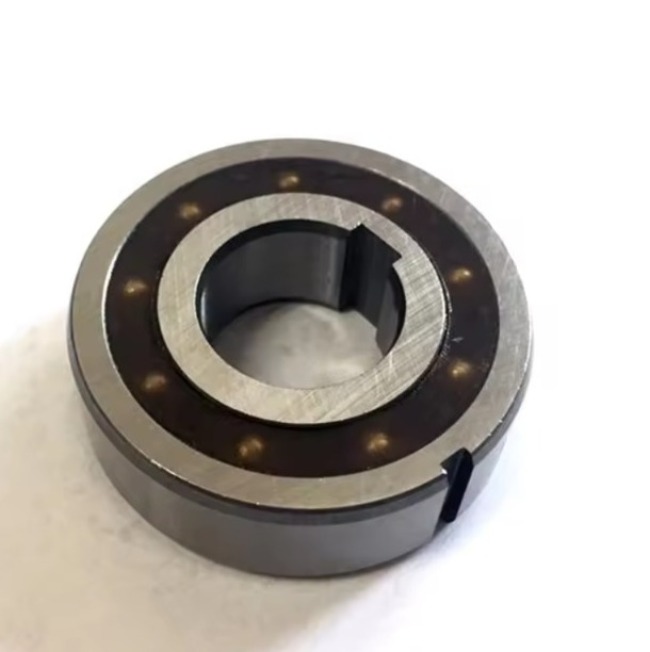

Photo:
Angular Contact Ball Bearings size chart:
|
|
|
|
|
|
|
|||||
|
CSK..P |
d |
|
TKN1) |
N max |
D |
L |
C |
C0 |
|
TR |
|
[mm] |
|
[Nm] |
[min-1] |
[mm] |
[mm] |
[kN] |
[kN] |
[kg] |
[Ncm] |
|
|
8* |
– |
2.5 |
15000 |
22 |
9 |
3.28 |
0.86 |
0.015 |
0.5 |
|
|
CSK12P |
6201 |
9.3 |
10000 |
32 |
10 |
6.1 |
2.77 |
0.04 |
0.7 |
|
|
CSK15P |
6202 |
17 |
8400 |
35 |
11 |
7.4 |
3.42 |
0.06 |
0.9 |
|
|
CSK17P |
6203 |
30 |
7350 |
40 |
12 |
7.9 |
3.8 |
0.07 |
1.1 |
|
|
CSK20P |
6204 |
50 |
6000 |
47 |
14 |
9.4 |
4.46 |
0.11 |
1.3 |
|
|
CSK25P |
6205 |
85 |
5200 |
52 |
15 |
10.7 |
5.46 |
0.14 |
2 |
|
|
CSK30P |
6206 |
138 |
4200 |
62 |
16 |
11.7 |
6.45 |
0.21 |
4.4 |
|
|
CSK35P |
6207 |
175 |
3600 |
72 |
17 |
12.6 |
7.28 |
0.3 |
5.8 |
|
|
CSK40P |
– |
325 |
3000 |
80 |
22 |
15.54 |
12.25 |
0.5 |
7 |
|
|
CSK..PP |
8** |
|
2.5 |
15000 |
22 |
9 |
3.28 |
0.86 |
0.015 |
0.8 |
|
CSK12PP |
– |
9.3 |
10000 |
32 |
14 |
6.1 |
2.77 |
0.05 |
3 |
|
|
CSK15PP |
6202 |
17 |
8400 |
35 |
16 |
7.4 |
3.42 |
0.07 |
4 |
|
|
CSK17PP |
6203 |
30 |
7350 |
40 |
17 |
7.9 |
3.8 |
0.09 |
5.6 |
|
|
CSK20PP |
6204 |
50 |
6000 |
47 |
19 |
9.4 |
4.46 |
0.145 |
6 |
|
|
CSK25PP |
6205 |
85 |
5200 |
52 |
20 |
10.7 |
5.46 |
0.175 |
6 |
|
|
CSK30PP |
6206 |
138 |
4200 |
62 |
21 |
11.7 |
6.45 |
0.27 |
7.5 |
|
|
CSK35PP |
6207 |
175 |
3600 |
72 |
22 |
12.6 |
7.28 |
0.4 |
8.2 |
|
|
CSK40PP |
– |
325 |
3000 |
80 |
27 |
15.54 |
12.25 |
0.6 |
10 |
|
