Hex Bore agricultural ball bearings is featured with a hex bore,based on deep groove ball bearing structure. Used in applications where collars, set screws, or any other locking devices are not required. This series incorporates a close fitting metal shield backed by a molded rubber seal. Also available relubricable-prefix "G".
Item No :
202KRR3 204KRR2Order(MOQ) :
100pcsPayment :
T/T L/C Western Union, MoneygramProduct Origin :
ChinaShipping Port :
Guangzhou or ShenzhenLead Time :
5-60 daysCustom Hex Bore Agricultural Ball Bearings with Various Models
This Bearing is an Agricultural Ball Bearing with a Hexagonal Bore manufactured to be double sealed on both sides to prevent any dust & debris from entering the bearing. This Hex Bore Agricultural Ball Bearings belongs to our collection of Single Row Radial Ball Bearings and features an extended inner diameter on both sides. Our Agricultural bearings are ideal for applications requiring contact with corrosive materials in harsh environments and have been pre-lubricated with grease, allowing it to be ready for use upon delivery.
Application :
The Hex Bore Agricultural Ball Bearings are used in a range of Agricultural and farm machinery applications from Combine Cross Augers to Planters, Gauge Wheels, Rotary Hoe, Cultivators, Tillers, Combines, Balers, Conveyor Systems, Grain Augers, Garden Tractors, Industrial Fans, Pumps, Power Transmission Equipment, among others.

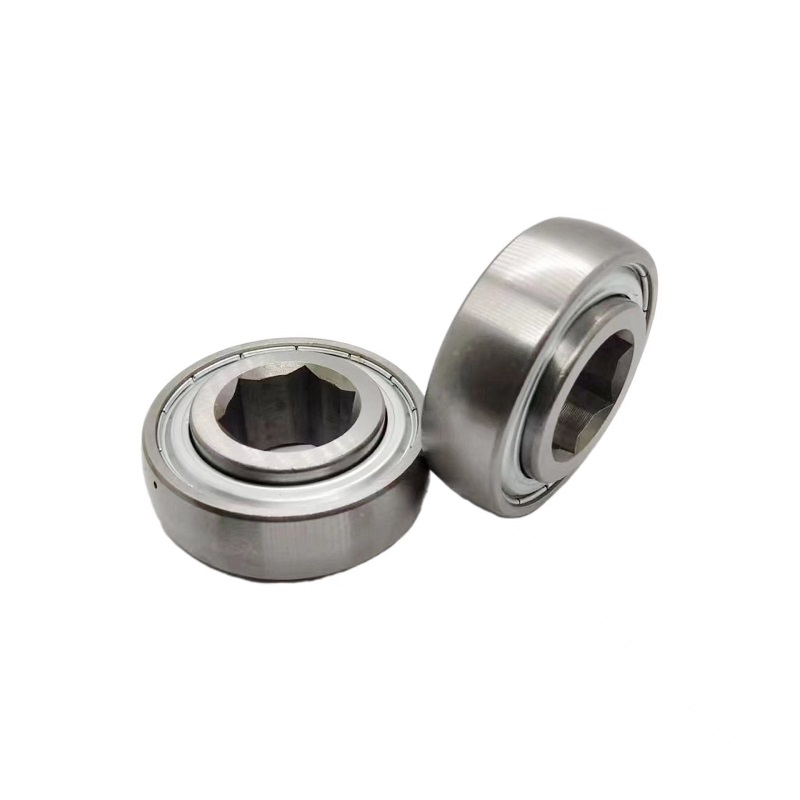

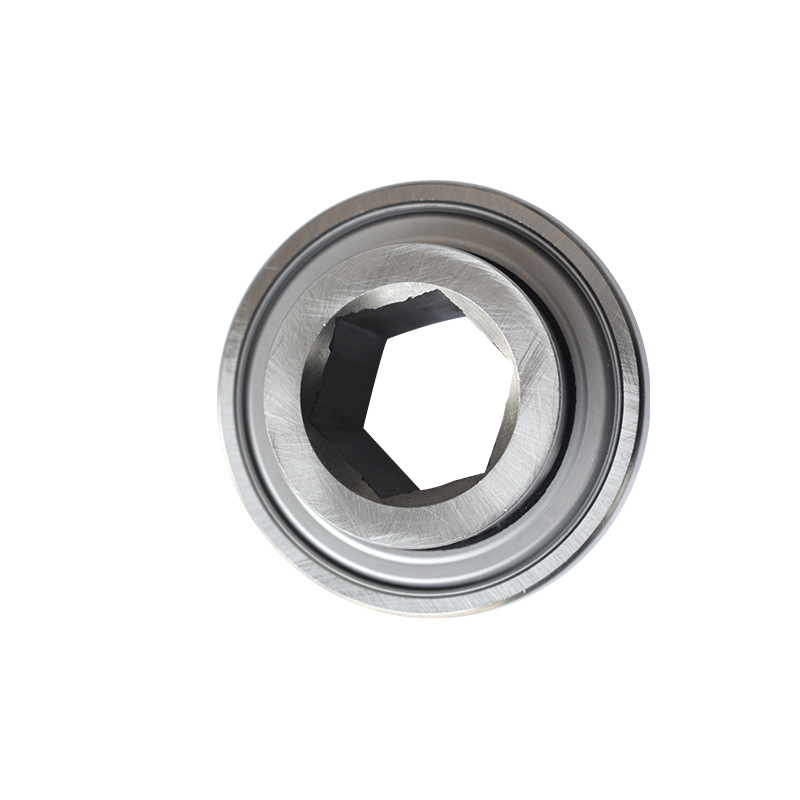

Photo:
Hex Bore Agricultural Ball Bearings Models:
|
Bearing Number |
HEX Shaft Size |
Bore Diameter |
Outside Diameter |
Inner Width |
Outer Width |
Weight |
|
mm |
Kg |
|||||
|
202KRR3 |
43359 |
16.46 |
35 |
11 |
13 |
0.054 |
|
204KRR2 |
43420 |
20.22 |
47 |
14 |
20.96 |
0.145 |
|
205KRR2 |
43289 |
25.65 |
52 |
15 |
25.4 |
0.2 |
|
205KRRB2 |
43289 |
25.65 |
52 |
15 |
25.4 |
0.2 |
|
205PPB13 |
43289 |
25.65 |
52 |
15 |
25.4 |
0.2 |
|
206KPP3 |
1 |
29.31 |
62 |
16 |
24 |
0.345 |
|
206KPPB3 |
1 |
29.31 |
62 |
18 |
24 |
0.345 |
|
206KRR6 |
1 |
29.31 |
62 |
16 |
24 |
0.341 |
|
206KRRB6 |
1 |
29.31 |
62 |
18 |
24 |
0.341 |
|
207KPP3 |
1.25 |
36.4 |
72 |
17 |
37.7 |
0.454 |
|
207KPPB3 |
1.25 |
36.4 |
72 |
17 |
25 |
0.395 |
|
207KRRB9 |
1.125 |
32.97 |
72 |
17 |
37.7 |
0.454 |
|
207KRRB12 |
1.125 |
32.97 |
72 |
17 |
25 |
0.395 |
|
207KRR17 |
1.25 |
36.65 |
72 |
17 |
25 |
0.395 |
|
207KRRB17 |
1.25 |
36.65 |
72 |
17 |
25 |
0.395 |
|
W208PPB16 |
1.25 |
36.65 |
80 |
18 |
36.53 |
0.658 |
|
W208KRRB6 |
1.375 |
40.3 |
80 |
21 |
36.53 |
|
|
W208KRR8 |
1.25 |
36.65 |
80 |
18 |
36.53 |
0.658 |
|
209KRRB2 |
1.5 |
43.99 |
85 |
19 |
30 |
0.576 |
|
W210PPB7 |
1.625 |
47.65 |
90 |
30.18 |
30.18 |
0.794 |
|
G206KPP4 |
1 |
29.26 |
62 |
18 |
24 |
0.281 |
|
G206KPPB4 |
1 |
29.26 |
62 |
18 |
24 |
0.277 |
|
G206KRRB6 |
1 |
29.26 |
62 |
18 |
24 |
0.268 |
|
G207KPPB2 |
1.125 |
32.97 |
72 |
19 |
37.7 |
0.454 |
|
GW208KRRB5 |
1.25 |
36.65 |
80 |
21 |
36.51 |
0.635 |
|
GW208PPB22 |
1.25 |
36.75 |
80 |
21 |
36.51 |
0.681 |
|
GC1200KPPB2 |
1.75 |
51.31 |
100 |
25 |
57.15 |
1.521 |
Advantage of WIS Bearing:
With over 15 years bearing industry experience ,we have perfect group pf technical engineers give you best support
Direct manufacturer of bearings can offer you lowest price with small MOQ
WIS bearings can provide OEM and ODM service as to your sample or drawings.
We focus on quality during production and guarantee 100% quality inspection before delivery
WIS bearings give you on time delivery
Hex Bore agricultural ball bearings is featured with a hex bore,based on deep groove ball bearing structure. Used in applications where collars, set screws, or any other locking devices are not required. This series incorporates a close fitting metal shield backed by a molded rubber seal. Also available relubricable-prefix "G".
