Flanged disc series incorporates a bearings with two , one-piece triple lip shroud seals and two rubber “o” bearings, it is encased in two heavy gauge stamped steel housings which are riveted together.
Item No :
FD209RBOrder(MOQ) :
100pcsPayment :
T/T L/C Western Union, MoneygramProduct Origin :
ChinaShipping Port :
Guangzhou or ShenzhenLead Time :
5-60 daysCustom Square Bore Flanged Disc Harrow Bearings
This Flanged Disc Harrow Bearing designed for agricultural applications. It is relubricatable and features a Square Bore with Cylindrical Outer Diameter. This bearing comes with a drilled oil hole in the groove and is pre-lubricated with grease to be ready for use upon arrival. Square bore disc harrow bearings are engineered to withstand the harsh conditions of agricultural use, including exposure to dust, dirt, moisture, and other environmental factors. They are typically sealed to prevent contaminants from entering the bearing and causing premature wear.
Application :
The Flanged Disc Harrow Bearings are used in a range of agricultural and farm machinery applications,typical applications include Combine harvesters, balers, seeder, tillage and lawn and garden machinery.

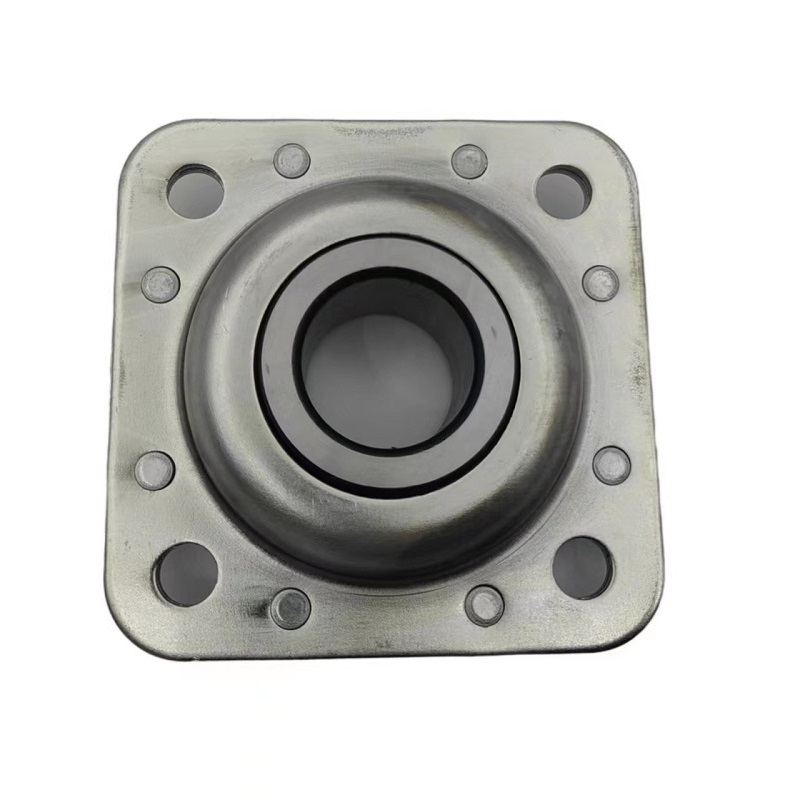

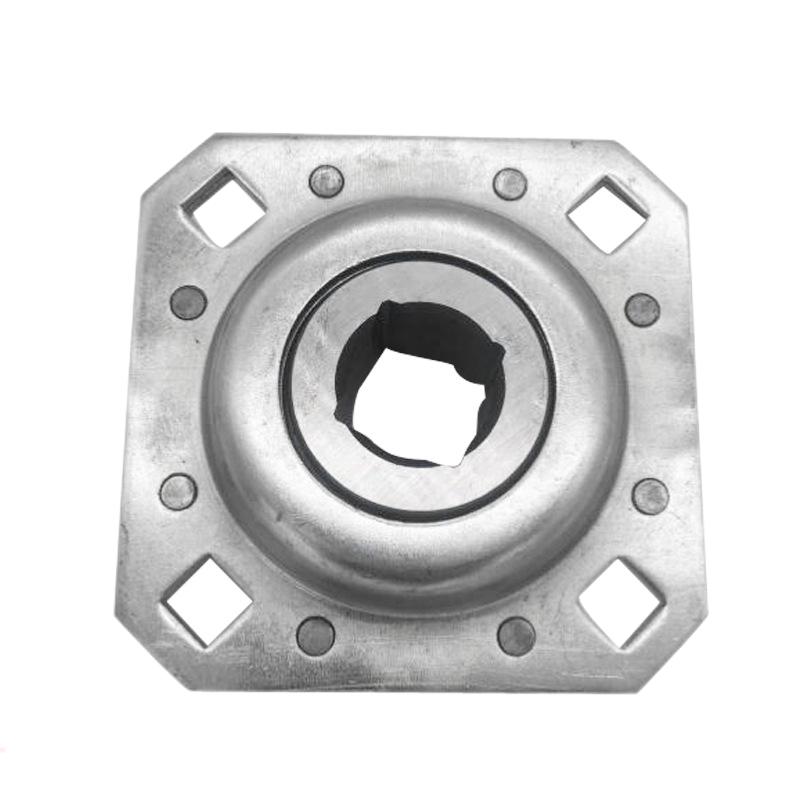

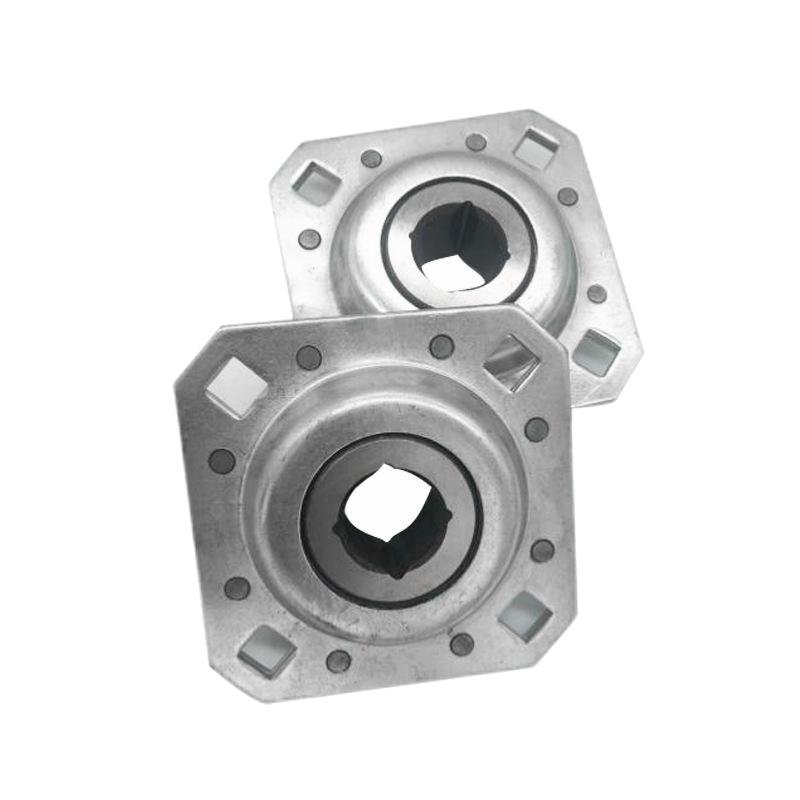

Photo:

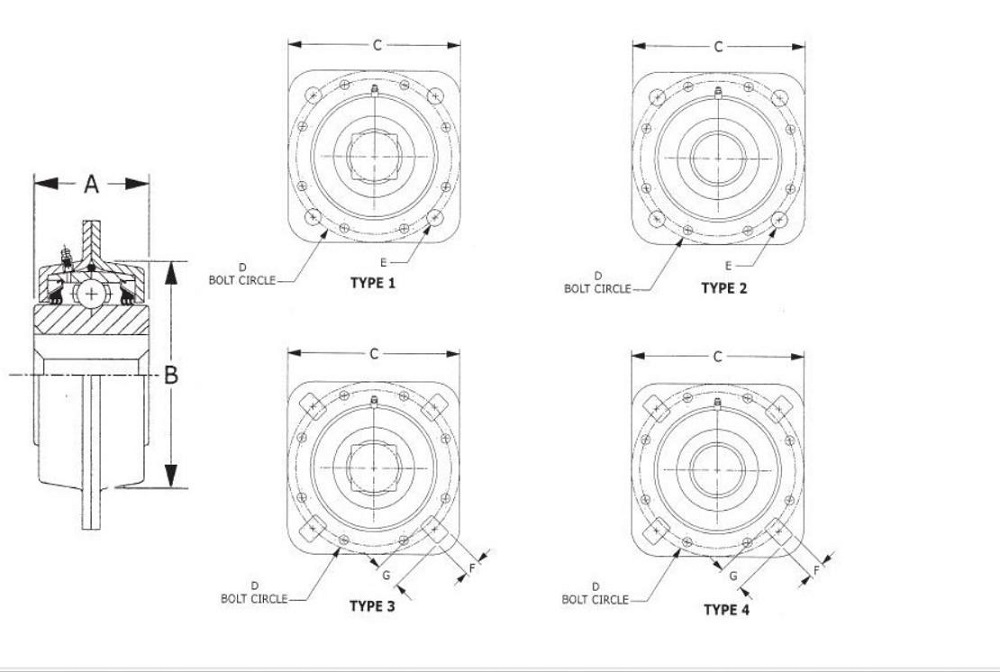

Square Bore Agricultural Ball Bearings Models:
|
Bearing NO. |
Dimensions(mm) |
Weight(kg) |
||||||
|
D |
SΦ |
A |
C |
F |
J |
K |
||
|
FD209RB |
38.7 |
13.5 |
42.86 |
127 |
127 |
41.7 |
6.75 |
1.86 |
|
ST491 |
44.83 |
13.5 |
42.8 |
127 |
127 |
41.7 |
6.75 |
1.53 |
|
ST491A |
45 |
13.5 |
42.7 |
127 |
127 |
41.7 |
6.75 |
1.52 |
|
DHU1-3/4" R-211 |
45 |
13.5 |
54 |
139.7 |
139.7 |
46 |
8 |
2.67 |
|
FD211RJA |
49.21 |
13.5 |
49 |
139.7 |
139.7 |
46 |
8 |
2.58 |
|
FD211RJ |
49.21 |
13.5 |
49 |
139.7 |
139.7 |
46 |
8 |
2.58 |
|
FD211RB |
55.57 |
13.5 |
55.6 |
139.7 |
139.7 |
46 |
8 |
2.42 |
|
ST740 |
55.57 |
13.5 |
55.6 |
141.3 |
141.3 |
45 |
7 |
2.42 |
|
ST491B |
38.7 |
|
42.86 |
127 |
127 |
41.7 |
6.75 |
1.58 |
|
FD209RM DHU1-1/8" S-209 |
|
|
42.86 |
127 |
127 |
41.7 |
6.75 |
1.86 |
Advantage of WIS Bearing:
With over 15 years bearing industry experience ,we have perfect group pf technical engineers give you best support
Direct manufacturer of bearings can offer you lowest price with small MOQ
WIS bearings can provide OEM and ODM service as to your sample or drawings.
We focus on quality during production and guarantee 100% quality inspection before delivery
WIS bearings give you on time delivery
Flanged disc series incorporates a bearings with two , one-piece triple lip shroud seals and two rubber “o” bearings, it is encased in two heavy gauge stamped steel housings which are riveted together.
