non-standard skateboard bearing 608zz with extended inner ring

non-standard bearing inner ring addition 608 6200 6800 6900 626 606 688 6900 606 6005 bearing smooth rotation, low noise, long service life, use for doors and Windows, hinges, fitness equipment, children's car transmission machinery

Item No :
608zz 626zz
Order(MOQ) :
100pcs
Payment :
T/T L/C Western Union, Moneygram
Product Origin :
China
Shipping Port :
Guangzhou or Shenzhen
Lead Time :
5-60 days

Inquire Now

Product Details

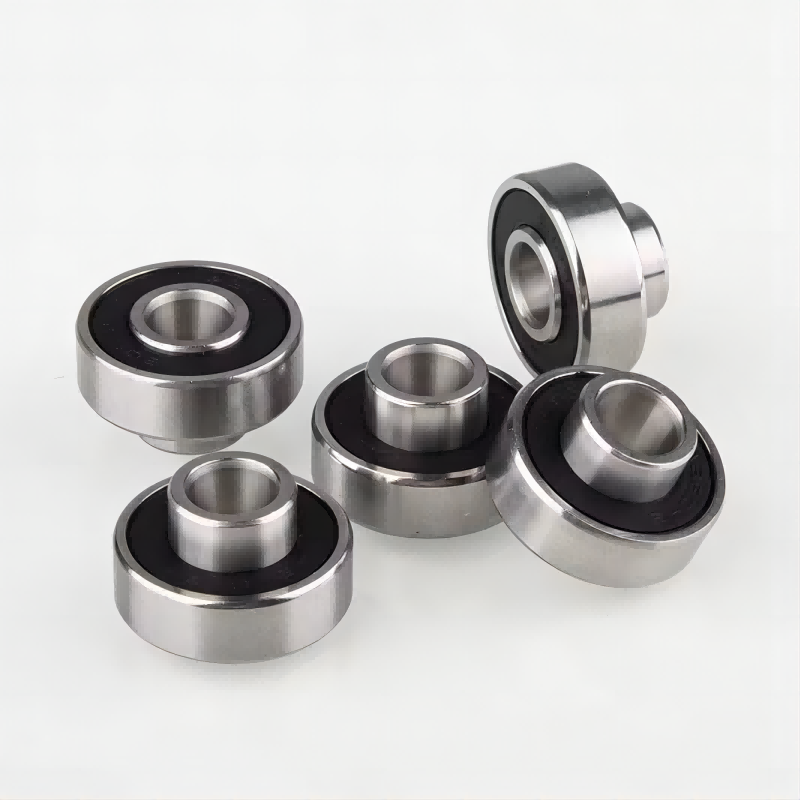

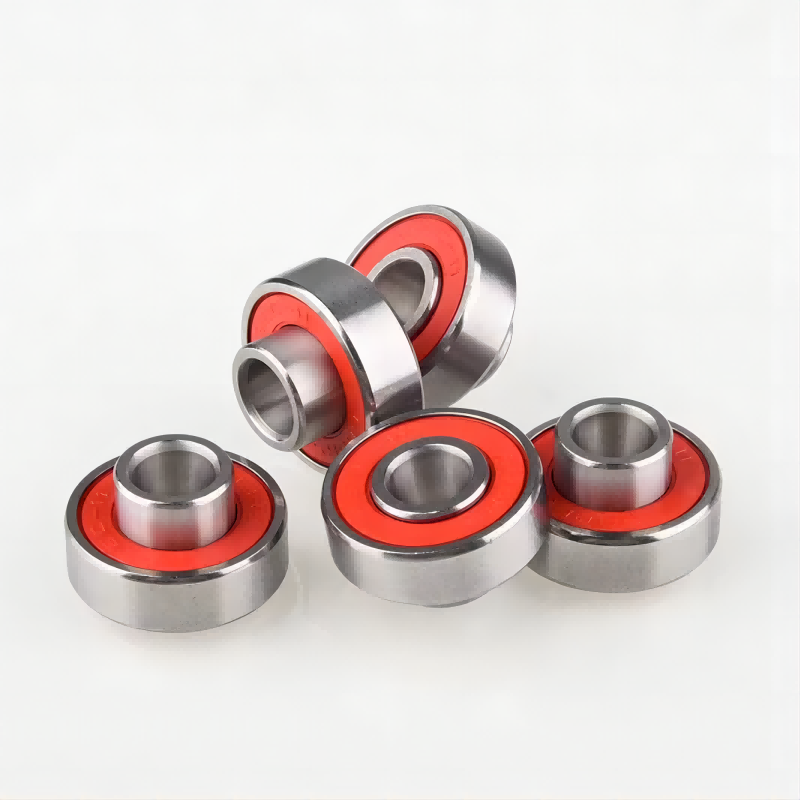

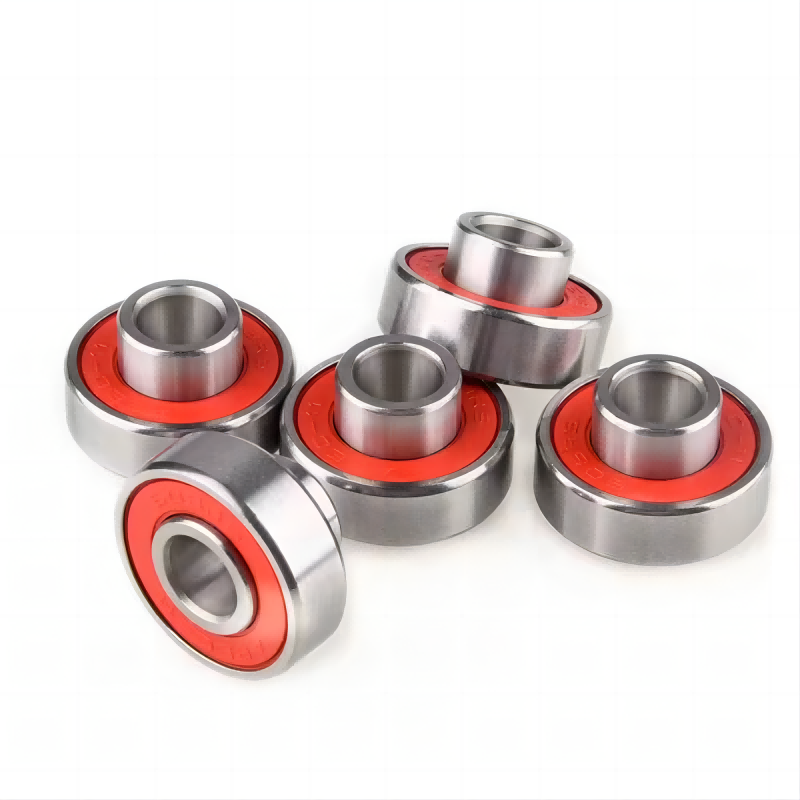

Non-standard skateboard bearing 608zz with extended inner ring

Non-standard bearings are bearings that do not conform to the outline dimensions stipulated by the national standards, that is, the outline dimensions are different from all bearings stipulated by the national standards. Non-standard bearings have low versatility and are mostly used in special equipment and special occasions.

Wison bearing work closely with customers to develop unique bearing solutions with specialized features to meet application requirements and solve functional problems. Our innovations in special bearings range from nearly standard bearings with slightly modified dimensions to intricate assemblies which integrate the bearing function into a complete mechanism.

In many cases, the overall cost of equipment can be reduced by incorporating special or customized bearings.

The performance and installation benefits to be gained from using custom-designed bearings include:

· Improved assembly reliability

· Enhanced rigidity or stability of the system

· Better location control through proper bearing orientation

· Reduction in handling operations and contamination

· Improved alignment of the rotating assembly

· Weight reduction

· Improved resistance to temperature extremes

· Reduction in tolerance stack up

Welcome contact with us for your special bearing solution.

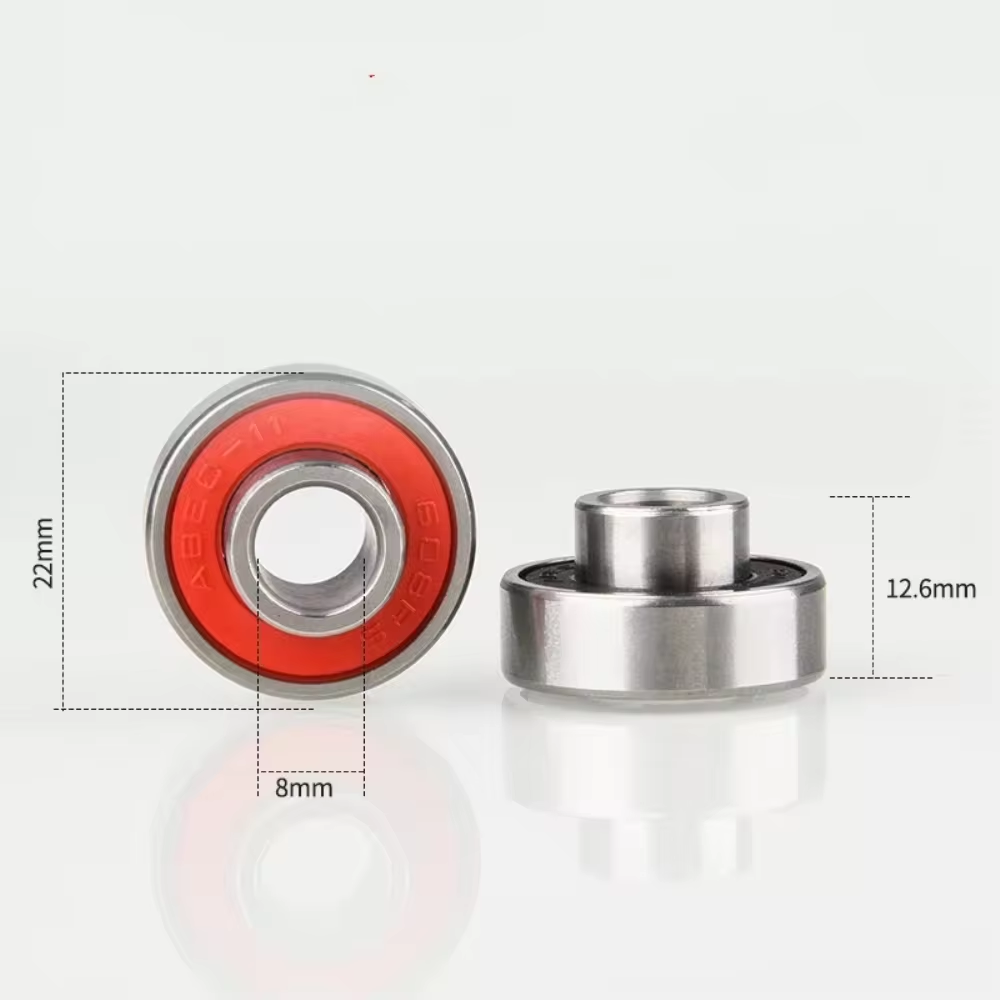

Product details

Bearing No.	608zz
Inner Diameter	8 mm
Outer Diameter	22 mm
Width	12.6mm
Seal type	rubber sealed


More Related Models :

Bearing NO.	Shape Dimension(mm)
	d(mm)	D(mm)	B(mm)	r min(mm)
822	8	22	14.9/10.3	0.3
1026	10	26	16.0/12.0	0.3
1228	12	28	16.0/12.0	0.3
62011/2	12.7	32	10	0.6
62021/2	12.7	35	11	0.6
62031/2	12.7	40	12	0.6
620113	13	32	10	0.6
620213	13	35	11	0.6
620313	13	40	12	0.6
6202-14	14	35	11	0.6
317	15	32	11	0.6
279	15	35	13	0.6
348	15	38	19	0.6
6203-15	15	40	12	0.6
319	15	43	13	0.6
392	15	52	16	1
62015/8	15.873	32	10	0.6
99502H	15.873	34.925	11	0.6
62025/8	15.873	35	11	0.6
62035/8	15.873	40	12	0.6
62045/8	15.873	40	12	1
620216	16	35	11	0.6
620316	16	40	12	0.6
62033/4	16	40	12	0.6
62043/4	16	40	12	1
W204	20	47	12	1

Advantage of WISON Bearing:

Rich experience

With over 15 years bearing industry experience ,we have perfect group pf technical engineers give you best support

Competitive price and small MOQ

Direct manufacturer of bearings can offer you lowest price with small MOQ

Customized service

WISON bearings can provide OEM and ODM service as to your sample or drawings.

Strict quality control

We focus on quality during production and guarantee 100% quality inspection before delivery

Delivery strength

WISON bearings give you on time delivery

Free sample provided
