Angular Contact Ball Bearings are designed to support bidirectional axial and radial loads on shafts. This is achieved through the contact angle of the ball with the inner and outer rings, usually 15 degrees, 25 degrees or 40 degrees. Smaller contact angles generally provide higher axial load carrying capacity, while larger contact angles provide higher rigidity and are suitable for high-speed applications.
Item No :
7206AC 7200ACOrder(MOQ) :
100pcsPayment :
T/T L/C Western Union, MoneygramProduct Origin :
ChinaShipping Port :
Guangzhou or ShenzhenLead Time :

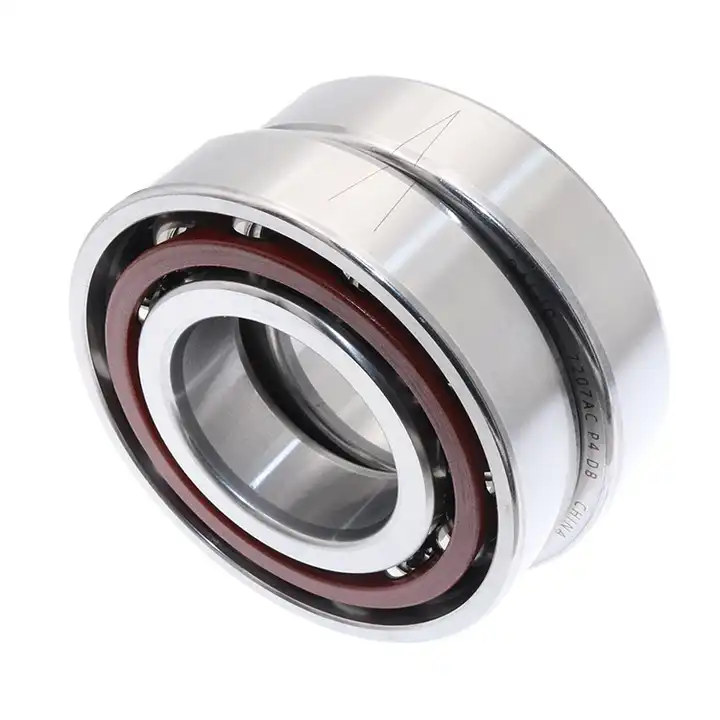

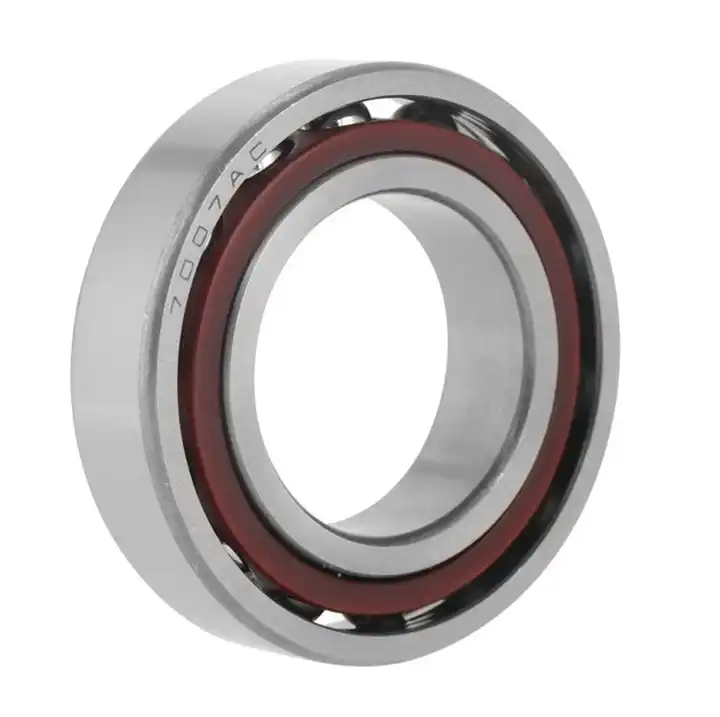

5-60 daysSingle Row Angular Contact Ball Bearings
One of the main advantages of Angular Contact Ball Bearings is their ability to provide good performance when rotating at high speeds. Due to the special nature of their design, they reduce rolling friction, resulting in less heat and energy loss when the bearings operate at high speeds. This makes them ideal for use in many industrial applications, including wind turbines, power tools, and automotive drivetrains.
Single Row Angular Contact Ball Bearings Size Chart:
|
Model Number |
d/mm |
D/mm |
B/mm |
|
7200AC |
10 |
30 |
9 |
|
7201AC |
12 |
32 |
10 |
|
7202AC |
15 |
35 |
11 |
|
7203AC |
17 |
40 |
12 |
|
7204AC |
20 |
47 |
14 |
|
7205AC |
25 |
52 |
15 |
|
7206AC |
30 |
62 |
16 |
|
7207AC |
35 |
72 |
17 |
|
7208AC |
40 |
80 |
18 |
|
7209AC |
45 |
85 |
19 |
|
7210AC |
50 |
90 |
20 |
|
7211AC |
55 |
100 |
21 |
|
7212AC |
60 |
110 |
22 |
|
7213AC |
65 |
120 |
23 |
|
7214AC |
70 |
125 |
24 |
|
7215AC |
75 |
130 |
25 |
|
7216AC |
80 |
140 |
26 |
|
7217AC |
85 |
150 |
28 |
|
7218AC |
90 |
160 |
30 |
|
7219AC |
95 |
170 |
32
|
Application :
Advantage of WIS Bearing:
With over 15 years bearing industry experience ,we have perfect group pf technical engineers give you best support
Direct manufacturer of bearings can offer you lowest price with small MOQ
WIS bearings can provide OEM and ODM service as to your sample or drawings.
We focus on quality during production and guarantee 100% quality inspection before delivery
WIS bearings give you on time delivery
Angular Contact Ball Bearings are designed to support bidirectional axial and radial loads on shafts. This is achieved through the contact angle of the ball with the inner and outer rings, usually 15 degrees, 25 degrees or 40 degrees. Smaller contact angles generally provide higher axial load carrying capacity, while larger contact angles provide higher rigidity and are suitable for high-speed applications.
