What is a Housed Bearing?

What is a Housed Bearing?

A housed bearing, also known as a bearing unit, is a critical component used in various industrial and mechanical applications to support rotating shafts. It consists of a bearing mounted inside a housing, offering additional protection and stability. The housing can be made from materials such as cast iron, steel, or thermoplastic, depending on the specific application and environment. Housed bearings are commonly used in machinery, conveyor systems, and other equipment where motion and friction need to be controlled effectively.

Key Components of a Housed Bearing

Bearing: The core element of a housed bearing is the actual bearing, which reduces friction between moving parts and supports the shaft's rotation. Depending on the design, it can be a ball bearing, spherical roller bearing, or tapered bearing.

Housing: The bearing is encased in a housing that protects it from external contaminants like dust, dirt, and moisture. The housing also helps secure the bearing to the equipment, providing stability and support.

Sealing Mechanism: Many housed bearings come with sealing mechanisms that further protect the internal bearing from contamination, extending its lifespan and reducing maintenance needs.

Types of Housed Bearings

There are several types of housed bearings designed for different industrial needs. Some of the most common include:

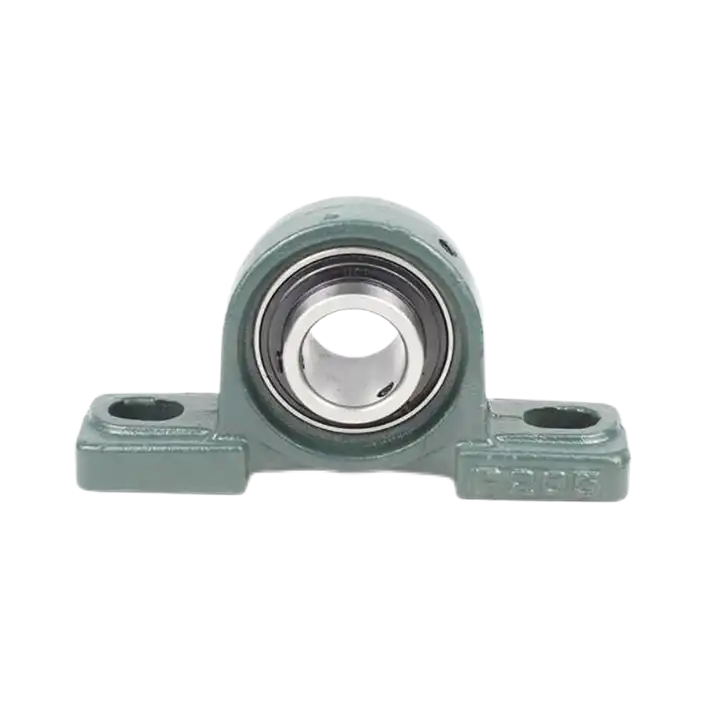

1. Foot Mounted Pillow Block Bearings

Foot mounted pillow block bearings are widely used in applications where a shaft is mounted horizontally. The housing is typically bolted to a flat surface, such as the base of a machine. These bearings are easy to install and maintain, making them an ideal choice for a variety of mechanical systems like conveyors, fans, and pumps.

The pillow block housing provides strong support, while the internal bearing handles the rotation, ensuring smooth motion and reducing wear. The Foot Mounted Pillow Block Bearings are popular for their versatility and reliability in different working conditions.

2. Housed Bearings Unit

A Housed Bearings Unit is another variation designed to offer maximum protection and stability. These units consist of both the housing and the bearing, and they come in various forms, including flange-mounted, pillow block, and take-up units. The versatility of housed bearing units allows them to be used in multiple configurations, ensuring adaptability for different industrial requirements.

Housed bearing units are easy to maintain, as the entire unit can often be replaced instead of just the bearing, saving time and effort during repairs.

3. Tapered Spherical Roller Bearing

The Tapered Spherical Roller Bearing is designed to handle heavy radial and axial loads. It offers high durability and can operate in challenging conditions, including high temperatures and heavy vibrations. These bearings are typically used in equipment like crushers, mills, and other machinery where the load varies significantly during operation.

The tapered design allows for the bearing to manage high levels of misalignment, making it suitable for applications where the shaft is prone to deflection or movement. When housed in a protective unit, the tapered spherical roller bearing becomes even more reliable, ensuring long-term performance in demanding environments.

Benefits of Using Housed Bearings

Extended Lifespan: The protective housing shields the bearing from contaminants and harsh environments, resulting in a longer service life.

Ease of Installation: Pre-assembled housed bearing units are straightforward to install, reducing downtime during maintenance or replacement.

Cost-Effective Maintenance: Since the entire unit can be replaced, there is less downtime and lower costs associated with repairs and maintenance.

Versatility: Housed bearings are available in different configurations to suit various industrial applications, making them adaptable to different machinery requirements.

Common Applications

Housed bearings are found in a wide range of industries, from food processing and manufacturing to heavy machinery and transportation. They are used in:

Conveyor belts

Fans and blowers

Pumps

Agricultural machinery

Mining equipment

In each of these applications, housed bearings ensure smooth rotation, reduced friction, and improved operational efficiency.

Housed bearings play an essential role in modern industrial systems by providing support, reducing friction, and protecting internal bearing components from contamination. Whether you are using Tapered Spherical Roller Bearings, Housed Bearings Unit, or Foot Mounted Pillow Block Bearings, these units offer reliability, durability, and ease of maintenance, making them indispensable in various mechanical applications.
